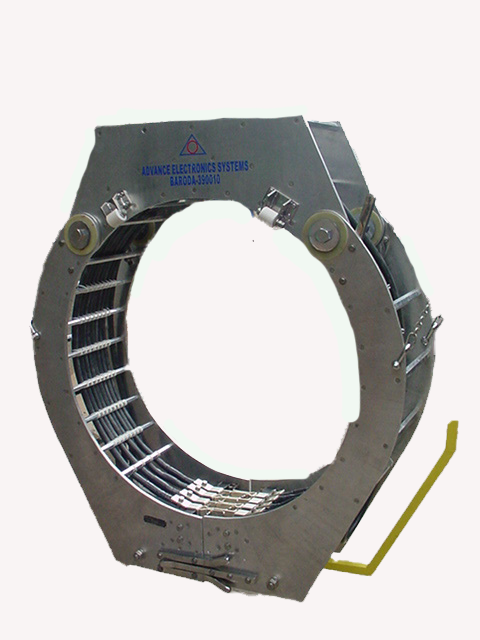

Pipeline induction heating coils are specifically manufactured and designed by ADVANCE ELECTRONIC SYSTEMS to meet the unique needs and requirements to preheat oil and gas pipelines before welding or other forms of joining. These coils use electromagnetic induction to generate heat in the pipeline, which can reduce the time and energy required to complete the welding process. Pipeline induction heating coils typically consist of a set of copper or aluminium coils that are wrapped around the outside of the pipeline. An alternating current power supply is used to induce an electrical current in the coils, which generates a magnetic field that heats the pipeline through induction. The benefits of pipeline induction heating coils include faster preheating times, reduced energy consumption, and improved weld quality. They are also useful in situations where conventional heating methods, such as flame or resistive heating, are not practical or safe. Pipeline induction heating coils are commonly used in oil and gas pipelines, as well as in other industrial applications where preheating of metal components is required. They are typically designed to be portable and easy to install, making them a convenient option for use in remote locations or challenging environments. the engineering design and dimensions are customizable as per client requirements.

•  External Induction heating Coil

 •  Pipeline Diameter up to 72in

 •  Operating temperature 200 Deg C

 •  Hydraulic Operating Mechanism

 •  Power Rating up to 500Kw

 •  Aluminum Body with EPR CSP cable

 •  Variable width up to 2000mm

 •  Lifting arrangement by side boom truck
