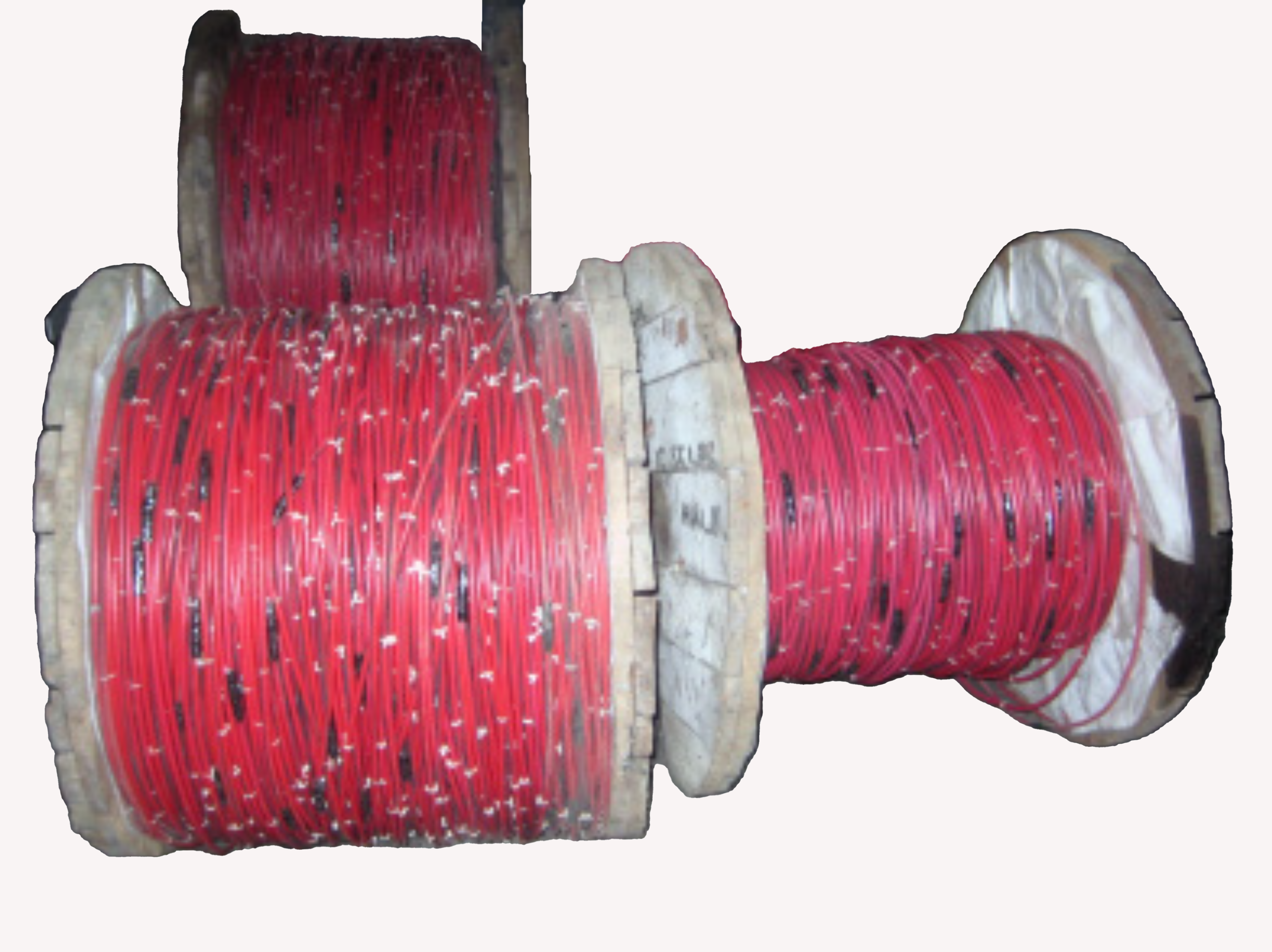

Z Flex Piggyback MMO Wire Anode is specifically manufactured by ADVANCE ELECTRONIC SYSTEMS to meet unique needs and requirements to prevent the corrosion of metal structures, such as pipelines, storage tanks, and offshore structures. It is a variation of the Z Flex anode and consists of two or more MMO-coated wires connected in parallel and mounted onto a flat, flexible strip. The Piggyback MMO Wire Anode is designed to be mounted onto the surface of a metal structure in a continuous line, providing uniform cathodic protection. The flexible strip allows for easy installation, and the MMO coating on the wires provides excellent corrosion resistance and high current density. The Piggyback MMO Wire Anode is ideal for use on flat metal surfaces, whereas the Z Flex Continuous MMO Wire Anode may not be suitable. It is particularly useful in situations where traditional anode installation methods are not feasible, such as areas with limited access or where excavation is not possible. The use of Z Flex Piggyback MMO Wire Anode is essential in the maintenance and safety of metal structures. It provides an effective method of preventing corrosion and ensuring the long-term integrity of the structure. Its MMO coating and flexible design makes it a popular choice for a wide range of applications, particularly in challenging environments. the engineering design and dimensions are customizable as per client requirements.

•  MMO wire Anode

 •  Piggyback Connection

 •  High Current Output up to 300mA/m

 •  Design Life 30 years+

 •  Operating Temperature 0OC to 120OC

 •  KYNAR - PTFE insulated Cable

 •  Continuous length upto 1000m

 •  3 Layer Joint Sealing

 •  Low contact Resistance
